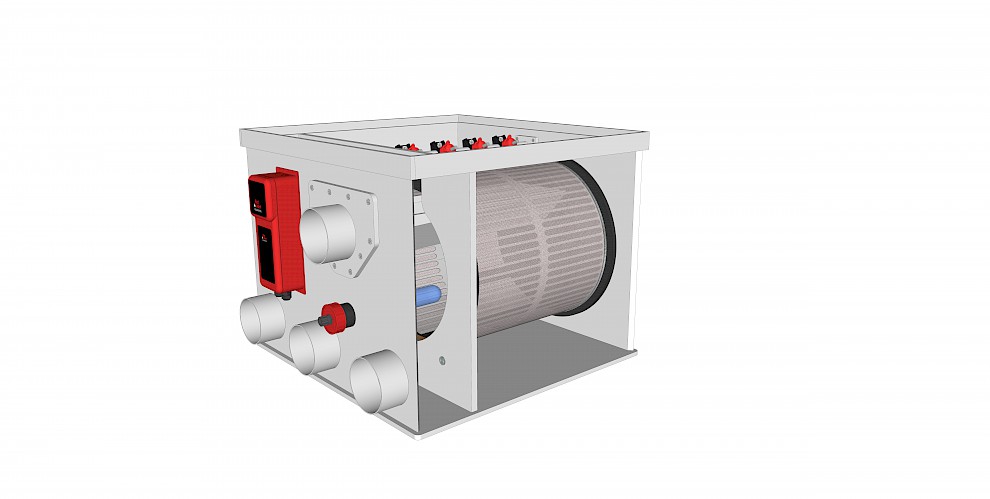

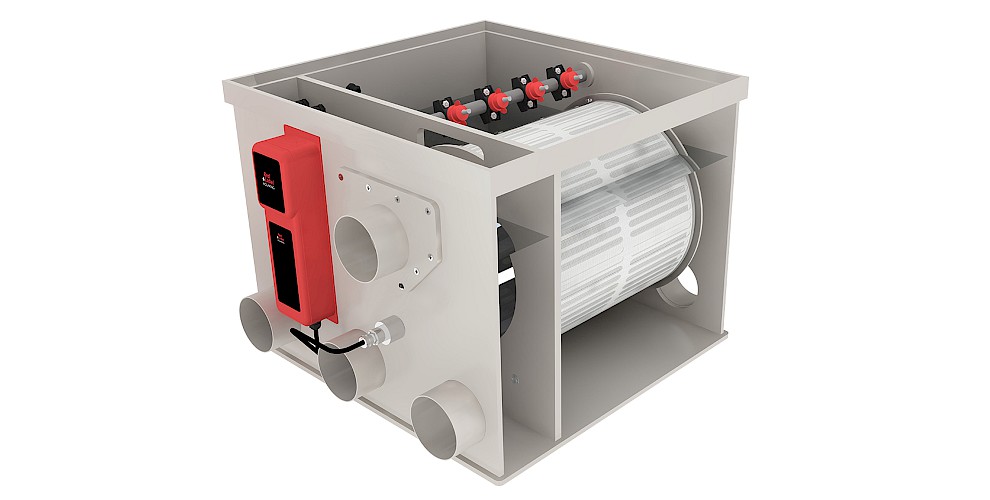

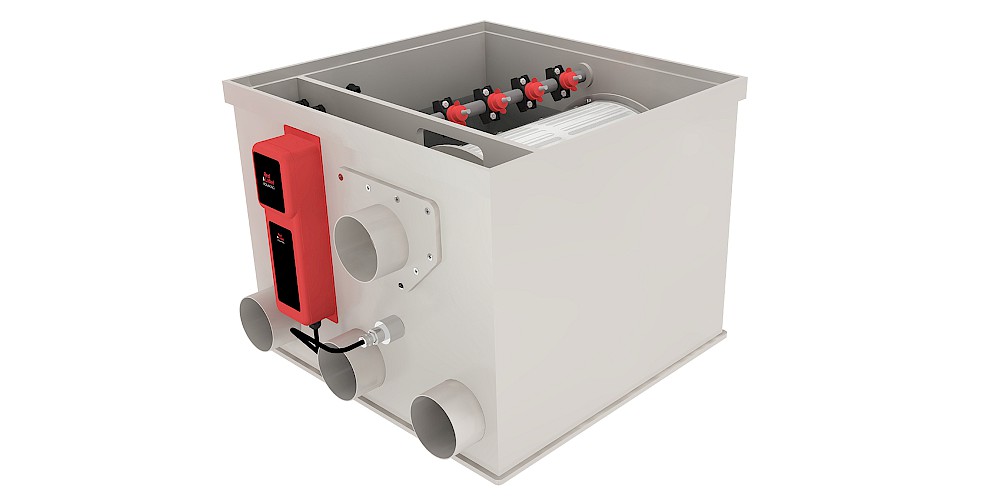

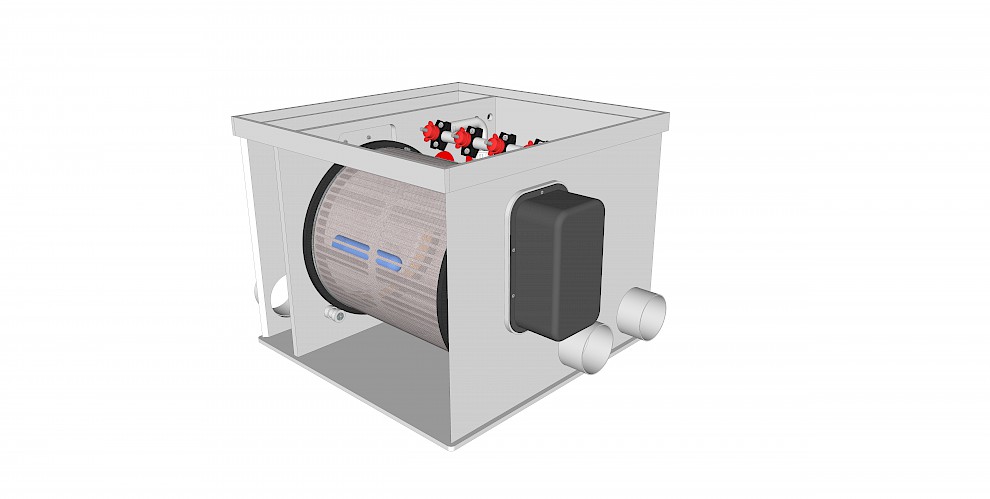

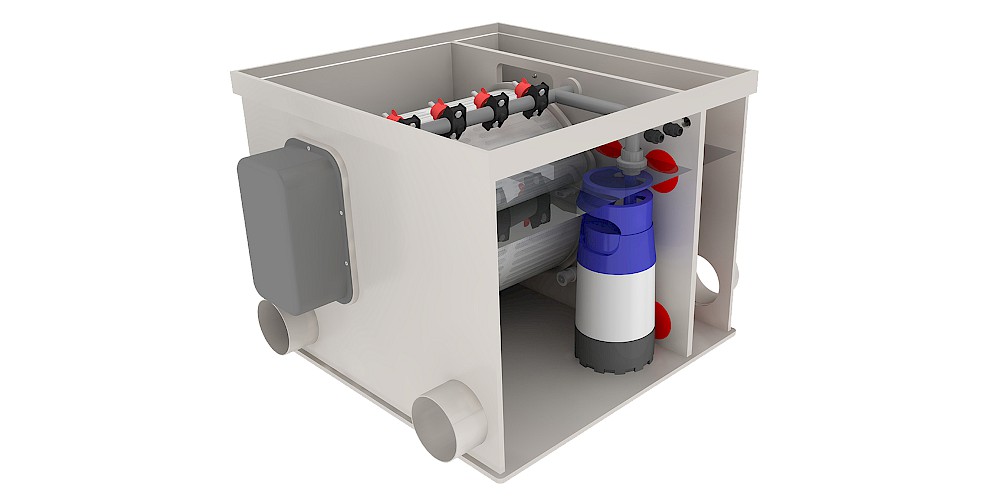

BASIC Drum 20/25
Red Label BASIC serie offers a high-quality and a complete filter system for the best possible price. These Red Label filters includes a number of unique extras. For example, BASIC serie is equipped with a built-in flushing pump. This results in less noise pollution, a smaller installation space and more efficient functioning of the drum filter. The filter is standard equipped with a built-in UVC unit with a 40 Watt INOX lamp. This unit ensures crystal clear pond water by destroying algae, bacteria and fungi. This means that UV equipment in your piping system can be eliminated, which promotes an optimal flow. The BASIC Drum filter 20/25 is designed to remove pollution from ponds up to a volume of 40m3.
The entire BASIC series is available in both a gravity-fed and pump-fed version.
Do you want your Happy to be a little different? Please contact us for the possibilities: info@aquaking.nl
Specificaties
-
Productno
F2010002 -
Type
AquaKing BASIC Drum 20/25 -
Model
Gravity or pumpfed -
Size (LxWxH)
675 x 815 x 530 mm -
Max. flow
25m3/h -
Screens INOX
120 micron -
Panel size
Diameter 400 x 400 mm -
Inlet
3 x 110 mm -
Outlet
2 x 110 mm -
Waste drain
1 x 110 mm -
Spraypump
Built-in Q800103 -
Gear Motor
27 Nm -
Controlbox
IP 65 -
Material
PP/PE -
UVC
Built-in 40 Watt INOX
